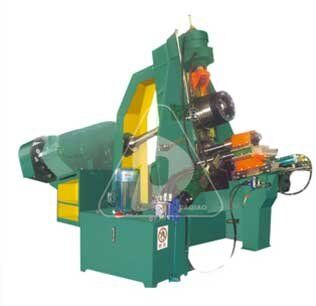

D51Y-1000E Ring Rolling Machine
Up to 1000mm outer diameter,350mm thickness rings can be rolled on D51Y-1000E Ring Rolling Machine.
Additional information
| Max Ring OD | 1000mm |
|---|---|
| Max Ring Height | 200mm/350mm |
| Max Production rate | 50 pieces/hour |
| Slide Stroke | 200-350mm |
| Roller Line Speed | 1.5m/s |
Process Description
Product Details
Parameter details of D51Y-1000E Ring Rolling Machine
| Model | D51Y-1000E |
| Max Ring OD | 1000mm |
| Max Ring Height | 200mm/350mm |
| Max Production rate | 50pieces/hour |
| Slide Stroke | 200-350mm |
| Roller Line Speed | 1.5m/s |
| Main Shaft Speed | 38rpm |
| Outer Dia of Rolling Wheel | 760-820mm |
| Roller Centre Height | 1350mm |
| Min Centre Distance from Rolling Wheel to Roller | 410mm |
| Main Motor Power | 110kw/132kw |
| Hydraulic Motor Power | 15kw/18kw |
| Machine Size | 5000mm×2400mm×3520mm |
| Machine Weight | 25000kgs |
Technological principle
Daqiao ring rolling machines are used to reduce the thickness and enlarge the blank’s outer diameter and inner diameter for the production of various seamless rolled rings.
Ring Rolling Machine Application
Material for producing rolled rings
- Carbon steel,
- Stainless steel,
- Alloy steel,
- Bronze,
- Aluminum etc
What industry use
- Automobile Industry,
- Gear Blanks,
- Gas & Petroleum Industry,
- Bearing Industry,
- Railway Industry, etc.
Features
- High productivity;
- Improve blank precision;
- Decrease metal cutting amount;
- Improve material utilization;
- Improve cutting performance;
- Improve rolled ring’s internal quality, etc.
